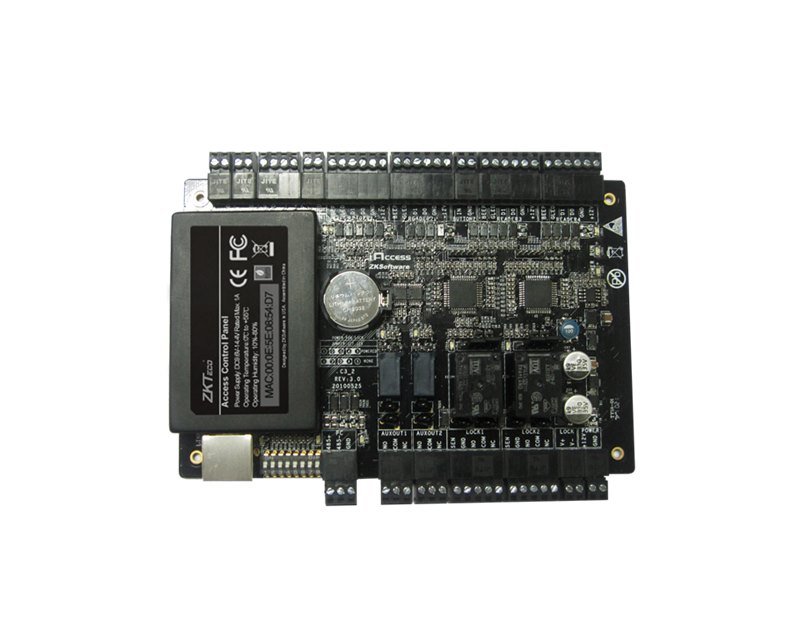

C2 Access Zkteco panel iki kapı arkalı önlü dört okyucu ile denetlenir.Tüm yetkilendirme ve raporlama access yazılımı yapılır. Sistem online çalışır.

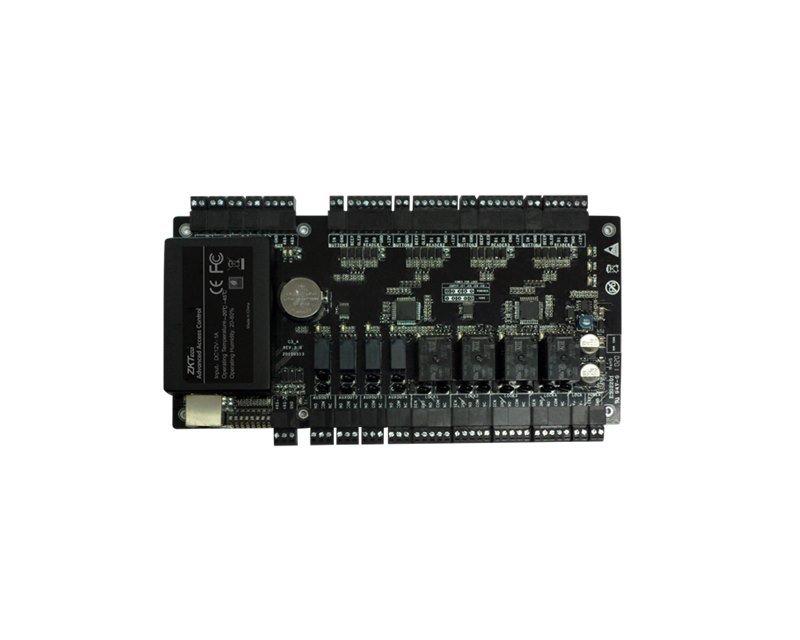

C3 Access Zkteco panel dört kapı denetleyicidir. arkalı önlü sekiz adet okuyucu modeli kullanılarak kapı kontrol yapılır. İşyeri ofislerinizde kartlı geçiş sistemi profesyonel anlamda kullanmak için en ideal pannelerdir. Tüm personelinizi denetleyebilir,yetkilendirme yapılarak görevi harici yerlere geçişi access kontrol yazılımı ile kısıtlanır.
Number of Doors Controlled
1 Door
2 Door
4 Door
Number of Readers Supported
2
4
4
Types of Readers Supported
26-bit Wiegand, others upon request
26-bit Wiegand, others upon request
26-bit Wiegand, others upon request
Number of Inputs
2 (Exit Device and Door Status, AUX)
6 (2 Exit Device, 2 Door Status, 2 AUX)
12 (4 Exit Device, 4 Door Status, 4 AUX)
Number of Outputs
2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)
4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output)
8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output)
Number of Doors Controlled
1 Door
2 Door
4 Door
Number of Readers Supported
2
4
4
Types of Readers Supported
26-bit Wiegand, others upon request
26-bit Wiegand, others upon request
26-bit Wiegand, others upon request
Number of Inputs
2 (Exit Device and Door Status, AUX)
6 (2 Exit Device, 2 Door Status, 2 AUX)
12 (4 Exit Device, 4 Door Status, 4 AUX)
Number of Outputs
2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)
4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output)
8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output)
Card Holders Capacity
30,000
30,000
30,000
Log Events Capacity
100,000
100,000
100,000
Weight
7.4lbs (3.35kg)
7.5lbs (3.4kg)
7.8lbs (3.55kg)
Communication
TCP/IP and RS-485
TCP/IP and RS-485
TCP/IP and RS-485
Enclosure
Powder Coated Aluminium
Powder Coated Aluminium
Powder Coated Aluminium
Mounting
Wall Mount
Wall Mount
Wall Mount
Recommended Power Supply
12V DC, 1.5A
12V DC, 1.5A
12V DC, 1.5A
Dimensions (Bundle Only)
15in.×3.15in.×11in.
380mm(L) X 80mm(W) X 280mm(H)
15in.×3.15in.×11in.
380mm(L)×80mm(W)×280mm(H)
15in.×3.15in.×11in.
380mm(L)×80mm(W)×280mm(H)
Dimensions ( Board Only)
6.3in.×4.17in.
(160mm×106mm)
6.3in.×4.17in.
(160mm×106mm)
6.3in.×4.17in.
(160mm×106mm)
